Reports

List of reports​

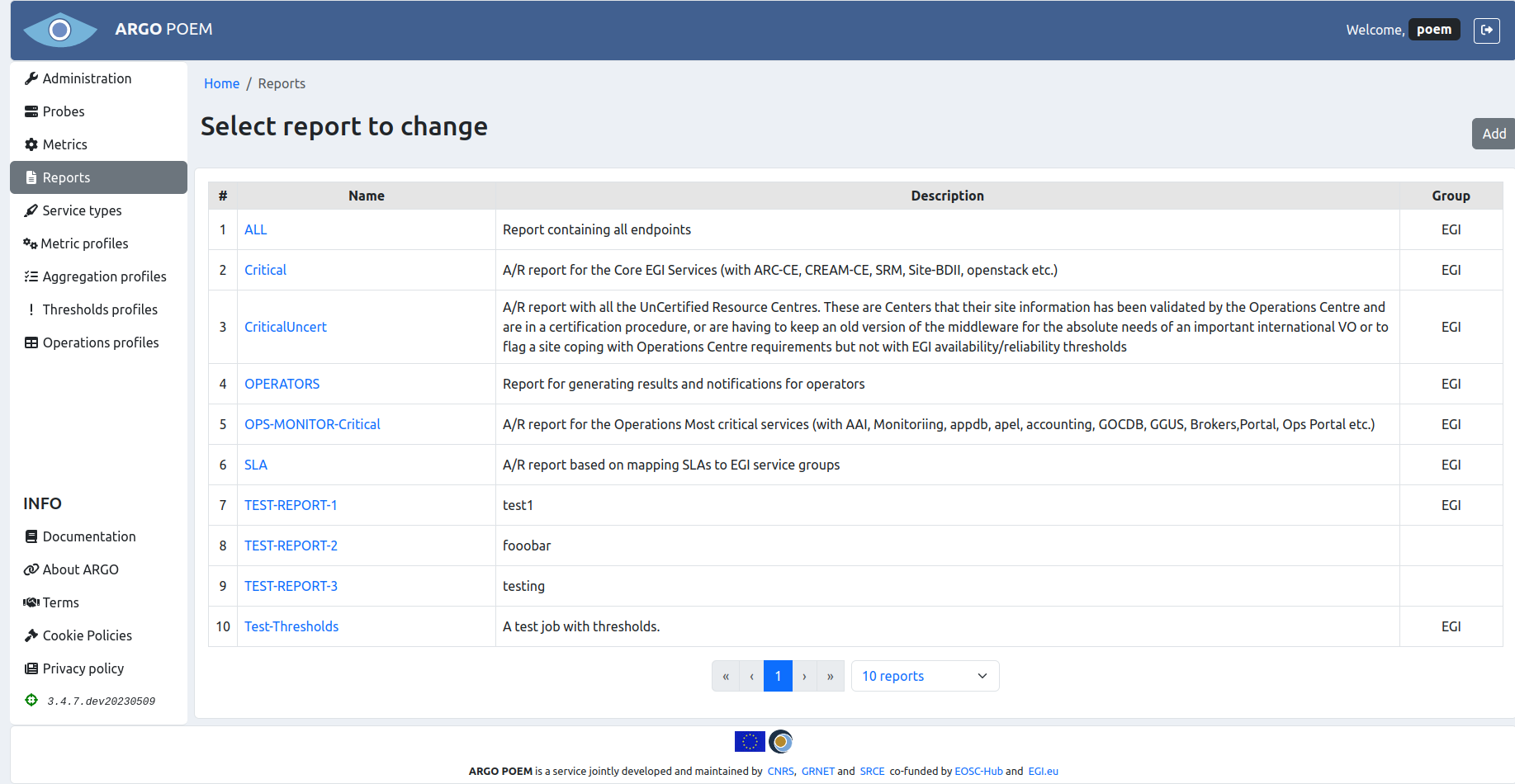

Reports page is accessible from the menu on the left side and is shown in the image below.

Tenant Reports

The table lists report name, short description and the group the report is associated to.

Reports details​

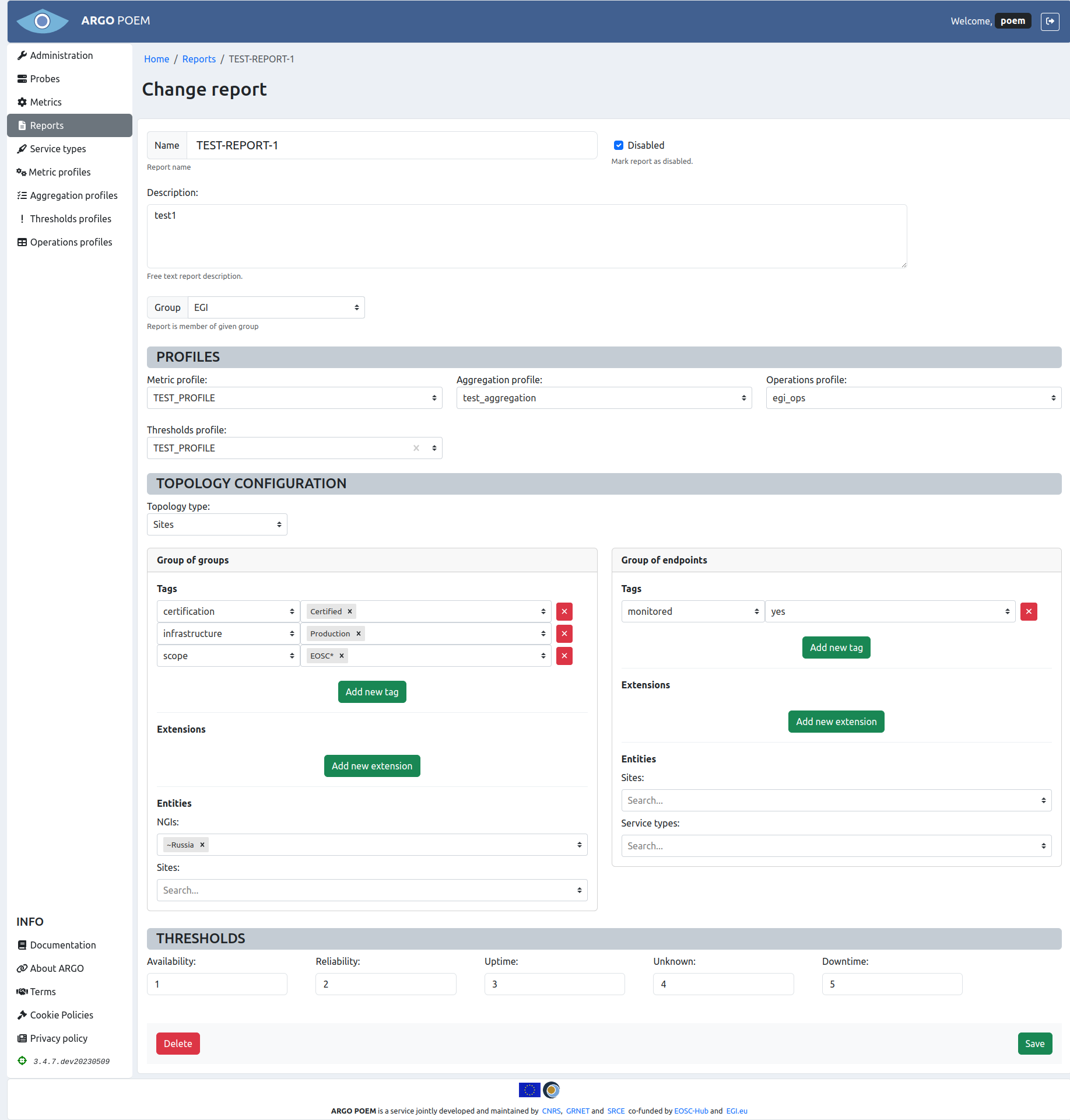

By clicking the report's name, user can access reports change page (shown in the image below).

Tenant Reports Details

Sections​

The first part of the page contains basic information on the chosen report, which includes Name, Description, and Group of reports it belongs to.

Profiles​

In the Profiles section, user may select metric, aggregation, operations, and thresholds profiles used in creation of the chosen report. All the profiles are chosen on dropdown menus. Thresholds profile is not mandatory, while all the others are.

Topology configuration​

In Topology configuration section users may choose two types of topology from the dropdown menu: Sites and Service groups. The topology is described in detail in the official documentation.

Furthermore, users may pick topology filters they want to use in the given report for two groups: Group of groups and Group of endpoints. In Group of groups, users have the option to filter by tags, extensions, and entities. In Group of endpoints one can filter by tags and extensions.

Note that entries in filters may be created with wildcard specification, and also it is possible to use ~ as negation operator to exclude something.

Thresholds​

In the Thresholds section, users may set thresholds according to their wishes.
